Configure FSOC

While fsoc supports multiple login types, we will only look at two of them for the purposes of this guide.

Service Principal
- Used for almost all fsoc commands (when working with a solution)
Agent Principal
- Used for fsoc melt push (when sending sample MELT data for your solution)

Create a service principal

First you need to login to your Platform Tenant (https:// <tenant_name> .observe.appdynamics.com). You will need to login with a user that has the “Company Admin” role to create a service principal.

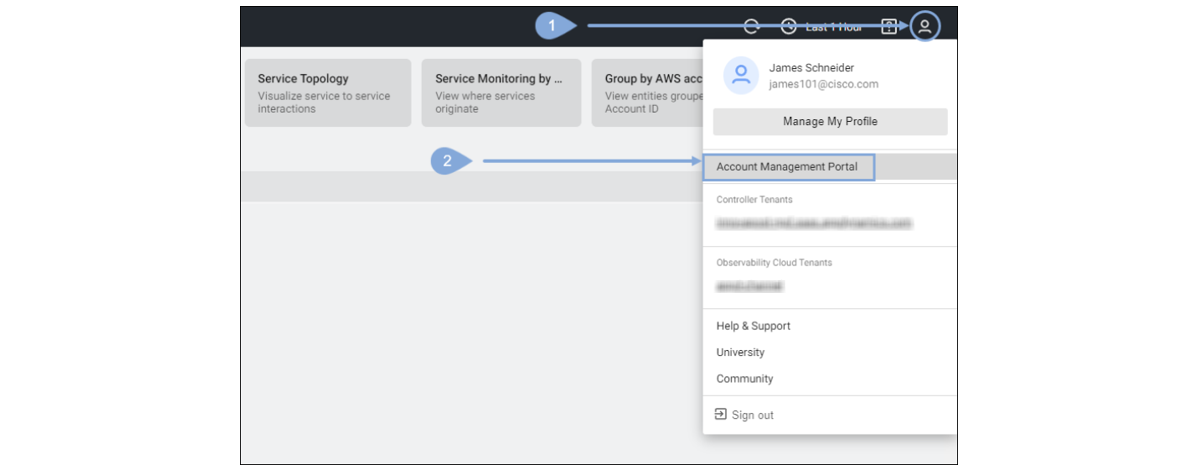

Click on the user profile icon.
Select “Account Management Portal” from the drop-down menu.

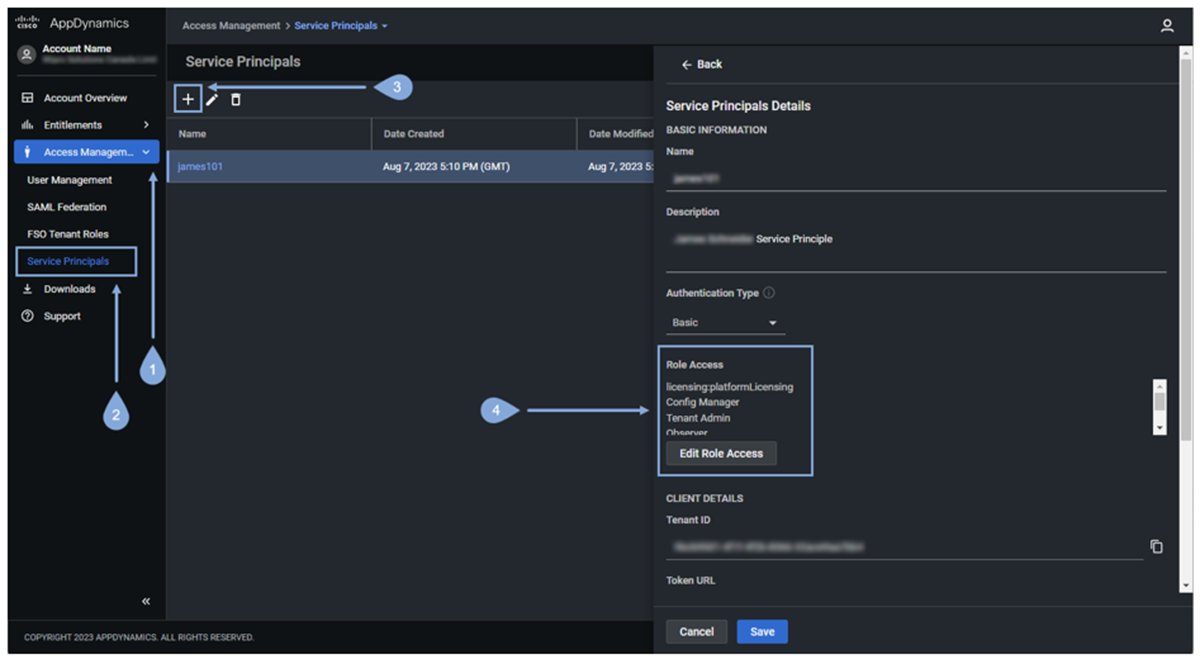

Now click on Access Management
Click on Service Principals
Click on the + icon.
Enter Name, Description, leave Authentication Type as Basic, Edit Role Access and select all roles except the licensing related role then click the Save button.

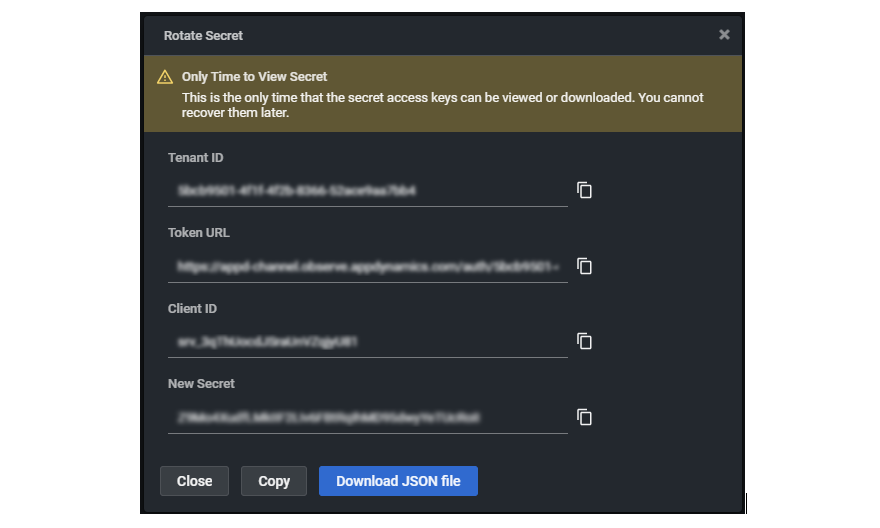

Next, download the secrets.json file to the directory for your tenant that you created earlier under your fsoc_projects directory.

Now rename the secrets.json file name to service-principal.json

What is a profile?

When you use the example command shown below to configure fsoc with your service principal (secrets.json file renamed to service-principal.json), you must specify a profile-name which represents the context that you are currently using to execute subsequent fsoc commands.

For example, while you can issue most fsoc commands using your profile related to your service principal, you will need to use a different profile (an agent-principal profile) to execute the fsoc melt push command (we’ll configure an agent-principal profile after we configure the service-principal profile).

Create local service profile

fsoc command to configure a service pricipal
Command Format:	fsoc config set --profile <profile-name> auth=service-principal secret-file=<full-path-to-service-principal.json>
Windows Example:	fsoc config set --profile my-sp-profile auth=service-principal secret-file=C:\fsoc_projects\my_tenant\service-principal.json
Unix-Mac Example:	fsoc config set --profile my-sp-profile auth=service-principal secret-file=/fsoc_projects/my_tenant/service-principal.json

Dev Tip You must use the fully qualified path to your service principal file with this command, even if you are running the command in the directory where the file resides. It is recommended that the path to that file contain no spaces in the path.

Now we are ready to configure fsoc to connect to our tenant with a service principal.

Windows Example Commands:

cd C:\fsoc_projects\my_tenant

fsoc config set --profile my-sp-profile auth=service-principal secret-file=C:\fsoc_projects\my_tenant\service-principal.json

Unix-Mac Example Commands:

cd /fsoc_projects/my_tenant

fsoc config set --profile my-sp-profile auth=service-principal secret-file=/fsoc_projects/my_tenant/service-principal.json

Create an agent principal

You need to login to your Platform Tenant (https:// <tenant_name> .observe.appdynamics.com). You will need to login with a user that has the “Company Admin” role to create an agent principal.

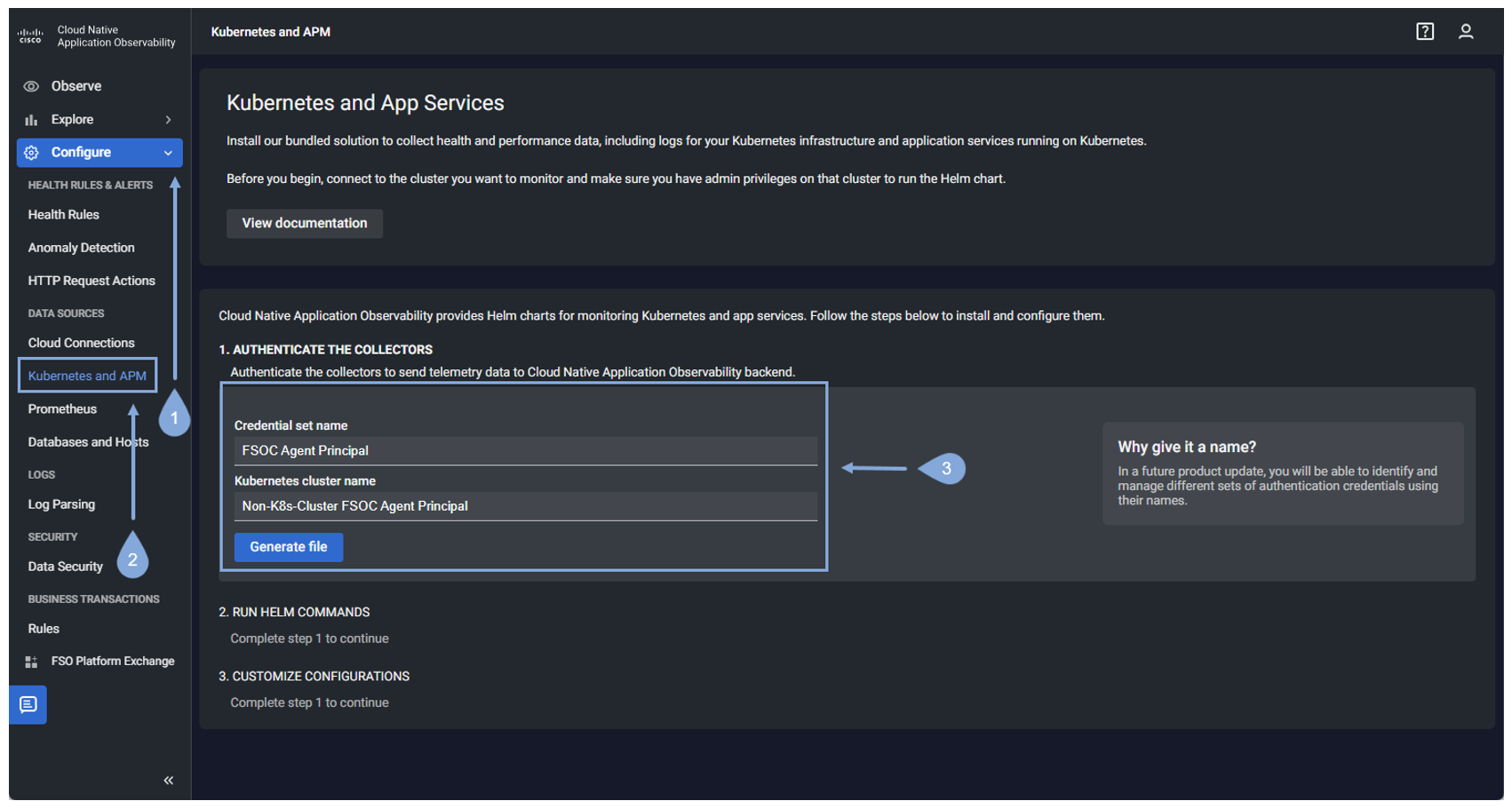

Click on “Configure”.
Click on “Kubernetes and APM”.
Enter values for “Credential set name” & “Kubernetes cluster name”, then click on “Generate file”.

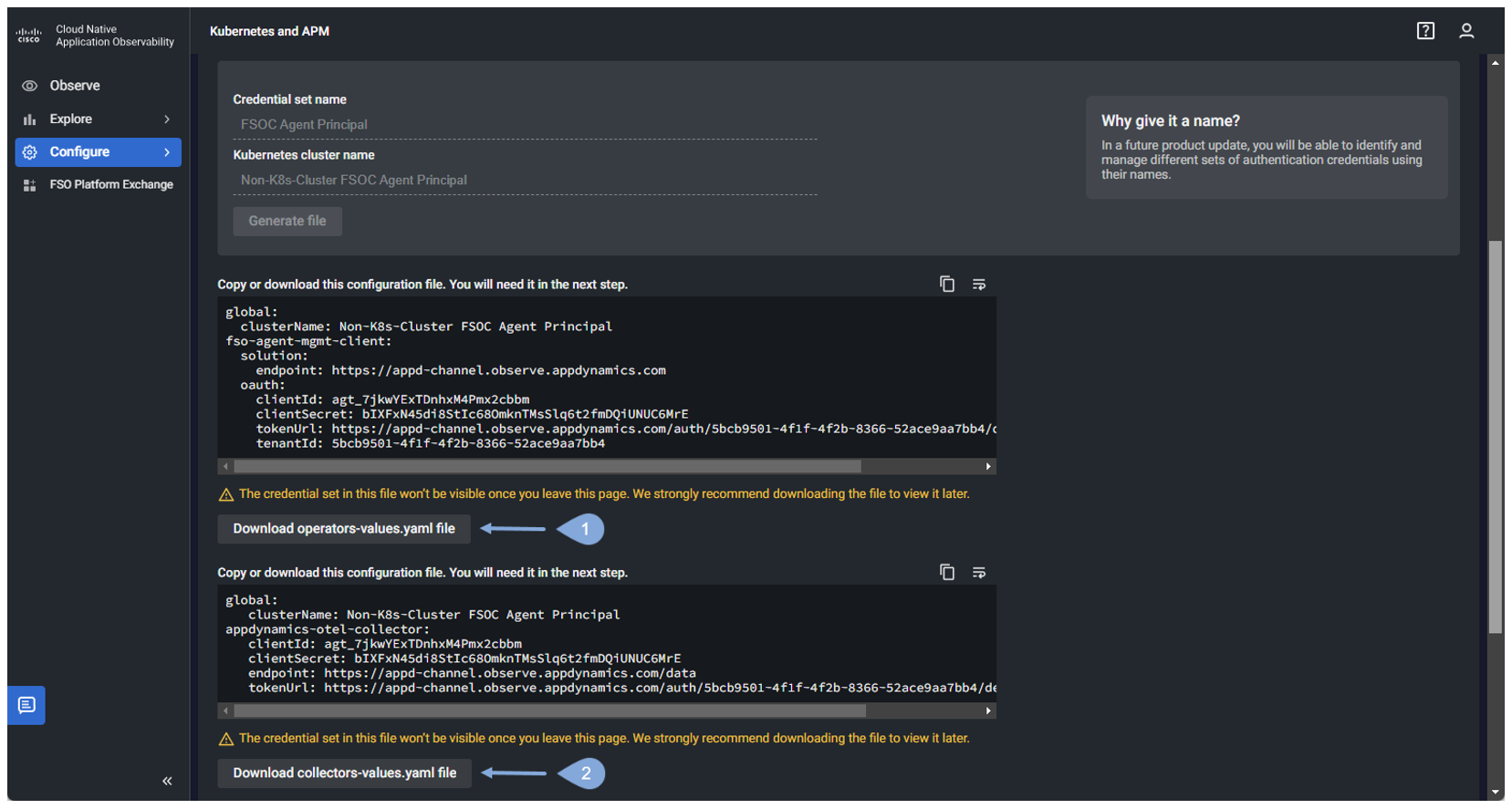

Next, download both YAML files to the directory for your tenant that you created earlier under your “fsoc_projects” directory.

Click on “Download operators-values.yaml file” to the directory for your tenant that you created earlier under your “fsoc_projects” directory (you won’t need this file to configure the agent principal, for fsoc but we’ll download it anyway for now).
Click on “Download collectors-values.yaml file” to the directory for your tenant that you created earlier under your “fsoc_projects” directory (this is the file we will use to configure the agent principal).

Create local agent profile

fsoc command to configure a agent pricipal
Command Format:	fsoc config set --profile <profile-name> auth=agent-principal secret-file=<full-path-to-collectors-values.yaml>
Windows Example:	fsoc config set --profile my-ap-profile auth=agent-principal secret-file=C:\fsoc_projects\my_tenant\collectors-values.yaml
Unix-Mac Example:	fsoc config set --profile my-ap-profile auth=agent-principal secret-file=/fsoc_projects/my_tenant/collectors-values.yaml

Now we are ready to configure fsoc to connect to our tenant with an agent principal by creating a local agent prinicipal profile.

Dev Tip You must use the fully qualified path to your agent principal file with this command, even if you are running the command in the directory where the file resides. It is recommended that the path to that file contain no spaces in the path.

Windows Example Commands:

cd C:\fsoc_projects\my_tenant

fsoc config set --profile my-ap-profile auth=agent-principal secret-file=C:\fsoc_projects\my_tenant\collectors-values.yaml

Unix-Mac Example Commands:

cd /fsoc_projects/my_tenant

fsoc config set --profile my-ap-profile auth=agent-principal secret-file=/fsoc_projects/my_tenant/collectors-values.yaml

Profile contexts

If you need to switch between profiles, you can always use the commands seen below.

fsoc command to change to a specific pricipal
Command Format:	fsoc config use <profile-name>
Example:	fsoc config use my-sp-profile

fsoc config use my-sp-profile

If you want to check which profile you are currently using, use the command seen below.

fsoc command to check current profile
Command Format:	fsoc config get

fsoc config get

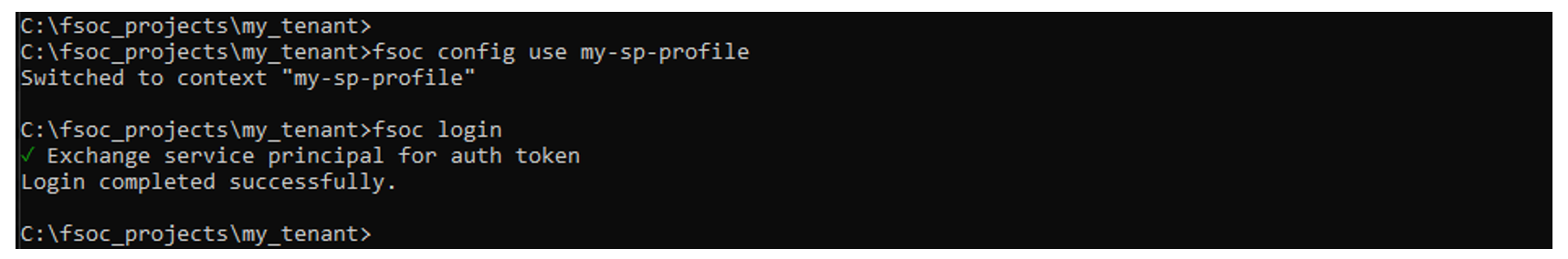

First, run the fsoc config use command with the profile name related to your service principal.

fsoc config use my-sp-profile

Now run the fsoc login command.

fsoc login

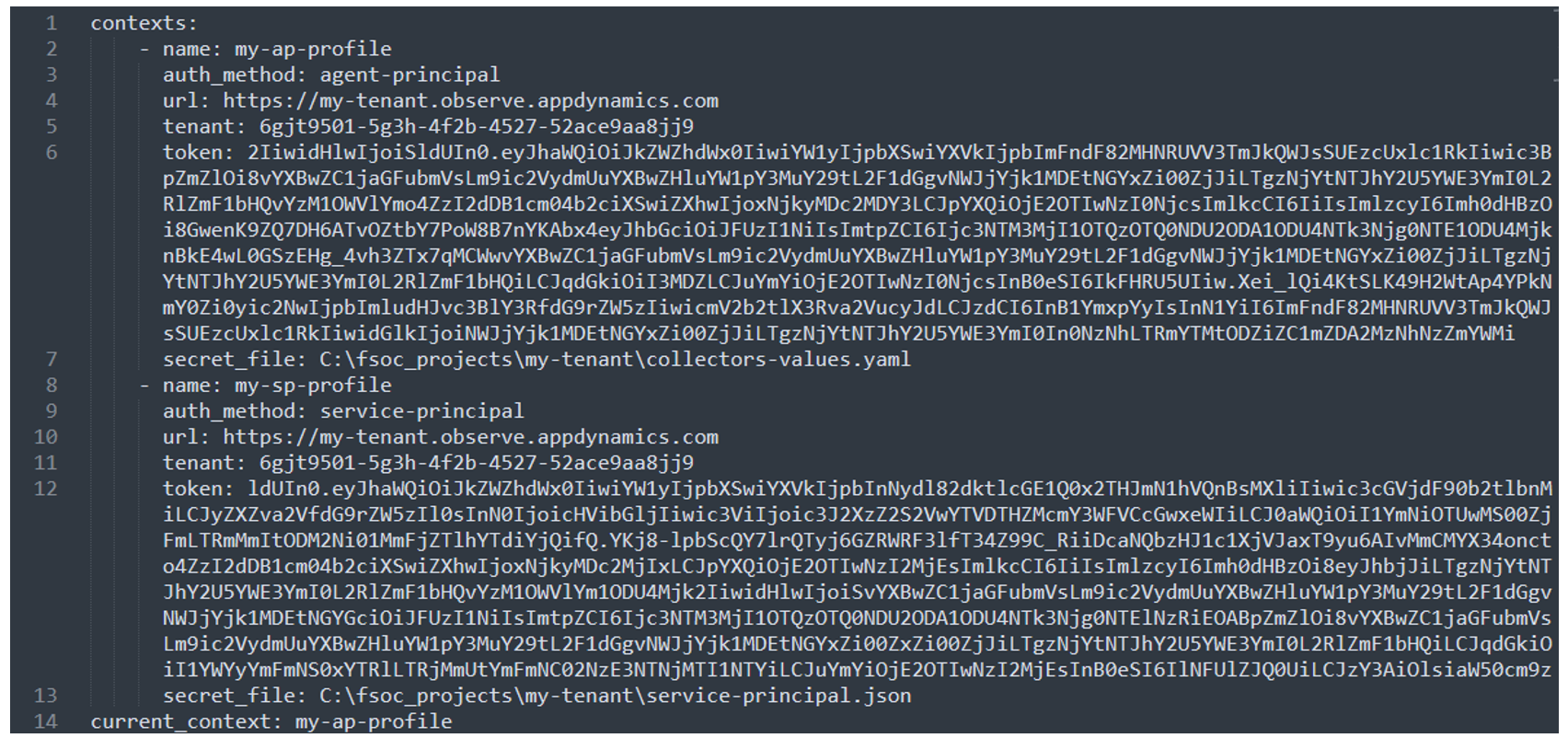

Locate fsoc configuration file

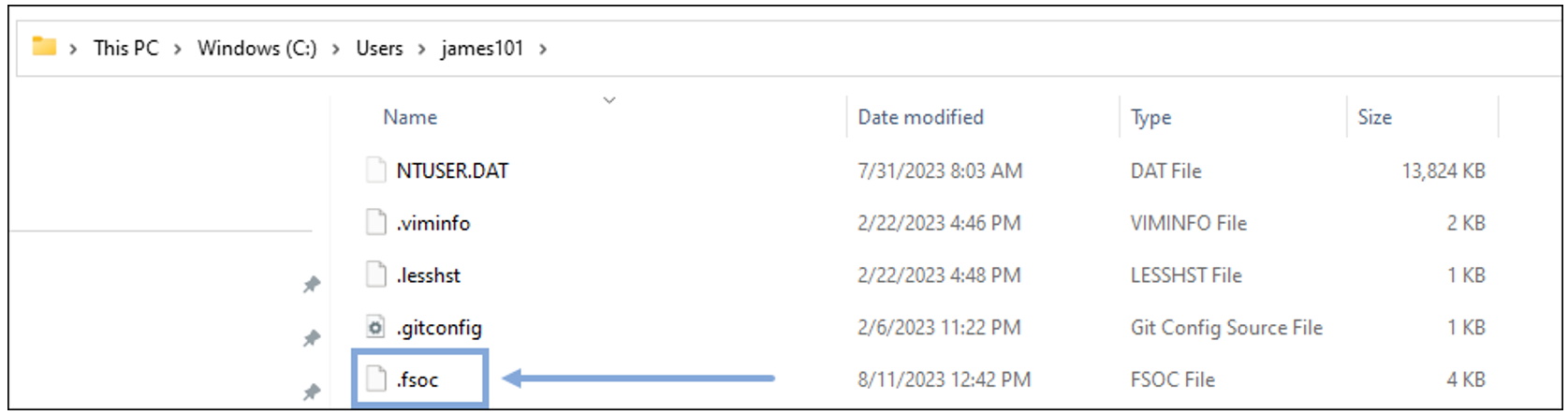

It would be very rare if your fsoc configuration gets corrupted, but just in case it does, you can delete the fsoc configuration file and then re-create your profiles (fsoc config set). The fsoc configuration file (named .fsoc) is typically found in your OS users home directory. The .fsoc configuration file is a hidden file, so you may need to ensure you are inspecting your home directory with hidden files visible.
